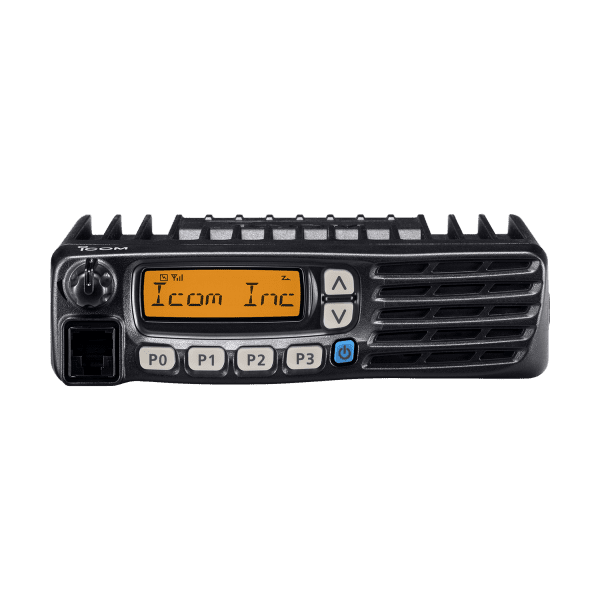

Icom IC-F5021 50W VHF Mobile Radio

128 Memory Channels

128 channels (Max.) separated into 8 memory zones. Memory channels can be identified with the 8-character channel name and selected easily with the up/down buttons.

Front Mounted Speaker

4 watts (typ.) front mounted speaker delivers clear and loud audio. With the speaker facing the operator, audio can be clearly heard without impediment during operation.

6 Programmable Buttons

A pair of up/down and P0–P3 function assignable buttons allow you to customize functions to meet specific needs. An independent volume knob offers simple, convenient operation.

MIL Grade Rugged Construction

The tough aluminum die-cast chassis and polycarbonate front panel have been tested to the MIL standard 810F. With this heavy-duty construction, the IC-F5021 series provides reliable operation over the long term in all manners of rugged environments.

Most Popular Signalings Built-in

Use the built-in 2-Tone, 5-Tone, CTCSS and DTCS capabilities as standard to set up your own talk groups, PTT ID and quiet stand-by when others are talking. The IC-F5021 series has added CTCSS/DTCS high speed decode and 2-Tone decode accuracy.

MDC 1200 Compatible

The following MDC features are available with the built-in MDC signaling.

PTT ID (TX/RX)
Radio check (RX)
Radio stun (RX)
Radio revive (RX)
Emergency TX/RX (No ACK)
5 alias table (Max.)
Multiple 2-Tone, Multiple 5-Tone
Up to ten 2-Tone and eight 5-Tone codes can be decoded on a channel. When a matched tone is received, the following items are programmable for each code.

Beep sound
Answer back
Scan
Bell icon
Radio stun/kill/revive

Radio Kill, Stun and Revive

The radio kill/stun functions disable a lost or stolen radio over the air, eliminating security threats from undesired listeners. When the stun command is received, all functions will be temporary locked out until the revive command is received or the unlock password is entered.

Lone Worker Function

When the radio is not operated for a preset period, the radio sounds a beep and requires you to push any button. If the radio is still not operated for a specified wait period, an emergency signal automatically transmits and informs co-workers that something may have happened to the individual worker.

Mode Dependent Scan

In the mode dependent setting, the scanning setting is dependent on the operating channel. When you change the operating channel, the scanning list automatically changes to the list set for that channel. It is convenient when you move to a different operating area and change operating channel, you don’t have to change the scanning setting.

Tx Channel Setting and Talk Back Function

The Tx channel setting allows you to program a transmission channel while scanning. Start channel, last detected channel, priority and preprogrammed channel are selectable. Prior to the Tx channel setting, the talk back function allows you to talk on the last detected channel, while scanning resumes after a preset time. The user can easily make a quick response with this function.

Wide Frequency Coverage

The IC-F5021 series covers a wide frequency range in one version (VHF 136– 174MHz)

Other Features

Embedded ESN
±2.5ppm frequency stability
Microphone hanger action programmable
Optional DTMF microphone (HM-152T)
8 DTMF autodial memories
BIIS 1200 PTT ID transmission
Power-on password function
Nuisance delete function
Time-out-timer, Lock-out penalty timer and more
