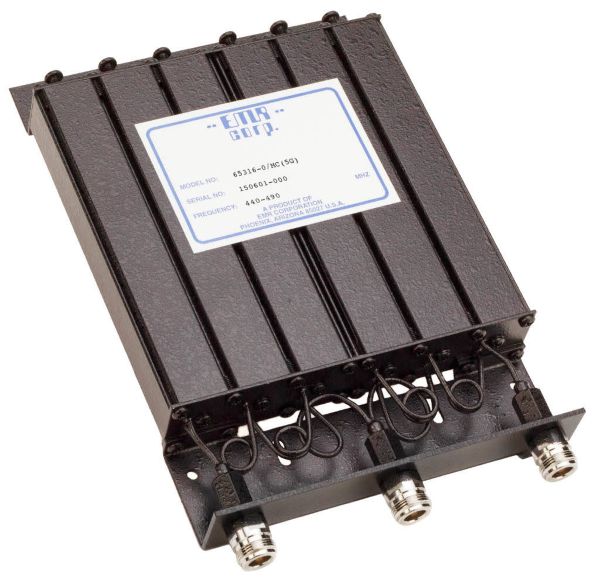

65316-0/MC EMR UHF Mobile Duplexer 460-470MHz Pre-Owned

EMR Corporation's 460 – 470 MHz mobile duplexer with N-Female connectors.

This duplexer allows bi-directional communication over a single common antenna. It is ideal for applications that call for a compact rugged unit where space is limited.

Product Features:

Minimum 5 MHz frequency separation
Compact, rugged design
Ideal for mobile applications

Product Specifications:

Weight: 4 lbs
Frequency Band: 450-470 MHz
Offset (Min-Max.): 4.6 – 6 MHz
Input Power (Max.): 50 W
Insertion Loss (Typ.): 1.2 dB
Isolation (Min. / Typ.): 70 / 80 dB
VSWR (Max.): 1.25:1
Impedance (Nom.): 50 Ω
RF Connectors: N Female
Finish: Black Paint
Cavity Size / Quantity: 1" / 6
Operating Temp. Range: -22 to 140 °F (-30 to +60 °C)

Warranty

90-Day Replacement Warranty
