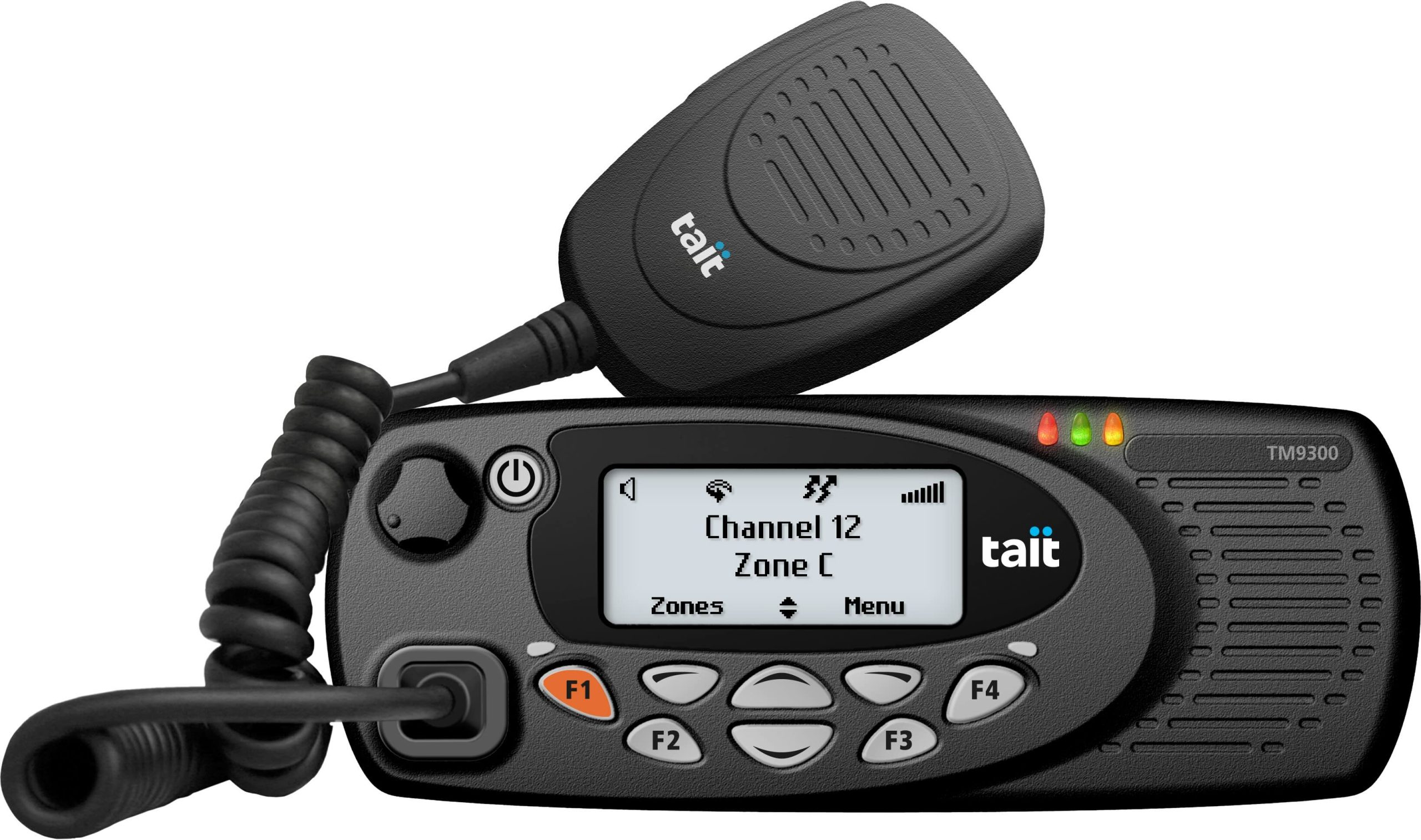

Tait Communications TM9300 DMR Mobile Radio Series

Call for Price

The TM9300 DMR mobile radio provides an efficient, digital voice and data communications solution for users in mission critical environments.
These quad-mode mobiles function in trunked DMR, conventional DMR, full MPT 1327, and conventional FM, and can roam between DMR and MPT networks.

Single Band Radio Available in 136-174MHz, 378-470MHz, 450-520MHz and 757-870MHz.



Quad-Mode for a simple migration

Each TM9300 is capable of four different modes: Analog Conventional, MPT-1327, DMR Tier 2, and DMR Tier 3. This makes the migration process easier than ever before - start migrating by installing TM9300s that operate in analog mode. Once your DMR network is built, each TM9300 can easily switch to digital.

Increased Worker  Safety

Worker safety is the top priority for our customers, which is why Lone Worker is standard on every TM9300. Emergency calls have priority access to the network, and crystal-clear voice helps users to understand each other. GPS and Location Services give dispatch the knowledge of where to send help when it's needed, and send it fast. TM93 GPS and Tait GeoFencing can be used in in all 4 modes - conventional analog, MPT, DMR Tier 2 and DMR tier 3.

TAIT AXIOM Mobiles Ready

Both new and existing TM9300s can be upgraded with TAIT AXIOM Mobiles, which loads your mobile radio with more computing power, WiFi, wireless broadband, and more. Increase productivity and safety with more connectivity, powerful new applications, and comprehensive APIs.

Increased  Business Efficiency

The voice and data capabilities of the TM9300 provide many avenues for improving efficiency. Send short, pre-defined data messages for location or status. Location Services helps you pinpoint the location of a problem and find nearby staff who can help, improving response time. TM93 GPS and Tait GeoFencing can be used in in all 4 modes - conventional analog, MPT, DMR Tier 2 and DMR tier 3.

A range of configurable models and accessories

The TM9300 has a range of control heads, including a Hand Held Control Head or a Graphical Control Head (single or dual). Each option is capable of local or remote operation. There are also multiple color options, to make it easier for workgroups to identify the right equipment.

Tait Tough

The TM9300 has a rugged build with an IP54 rating, water-resistant control head, and exceeds relevant MIL-STD-810G tests for vibration, shock, humidity, and more. You can rest assured that when you invest in a Tait mobile radio, it is an investment that will last.

Tait TM9300 Specifications

Technical Specifications

Frequency Bands

VHF 136-174MHz, UHF 400-470MHz (H5), UHF 450-520MHz (H7), and 700/800MHz from 757-870MHz.

Talk Groups

26 talk group lists comprised of up to 1,000 – 2,000 members each

Receiver Sensitivity

Sensitivity (DMR) 1% BER in VHF, UHF, and 700/800/900 MHz of -119dBm(0.25μV)

Dimensions

Body Dimensions: (DxWxH)
Height 25W: 2.1in (52mm), 30W/35W/50W: 2.1in (52mm)
Width 25W: 6.3in (160mm), 30W/35W/50W: 6.3in (160mm)
Depth 25W: 6.9in (175mm), 30W/35W/50W: 7.7in (195mm)

Tait Tough

Military Standards for high humidity, sand & dust, vibration, shock, rain, solar radiation, and more. IP54 Water resistant casing. Operating temperature of 22ºF to 140ºF (-30ºC to 60ºC).

Output  Power

50/40/35 watt output power

Channel/Zones

4,000 channels / 100 zones for TM9355 and 100 channels / 1 zone for TM9315

Advanced Options

Bluetooth, WiFi OTAP, Last Over Repeat and Onboard Voice Recording available for some models
