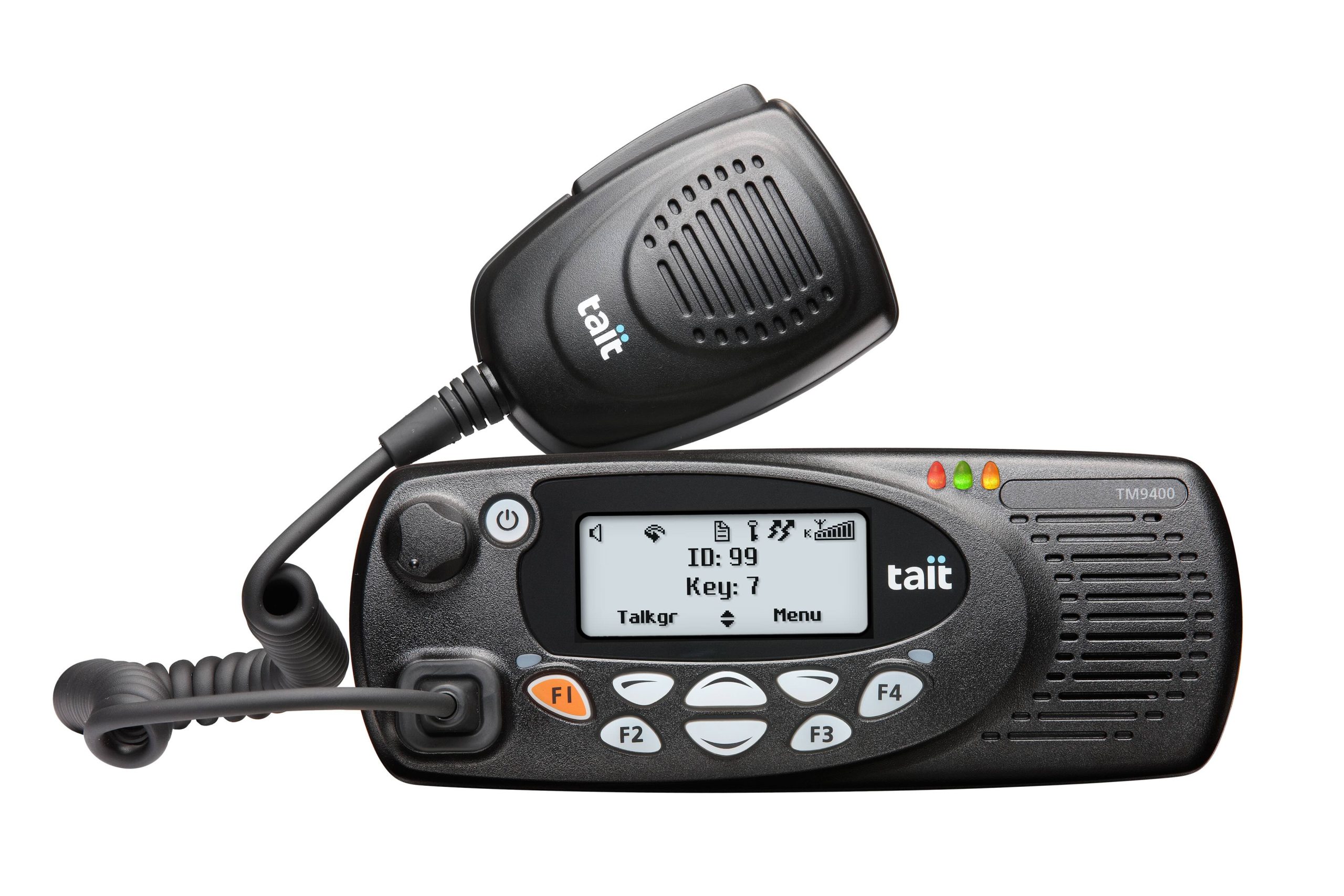

Tait Communications TM9400 P25 Mobile Radio Series

Call for Price

The Tait TM9400 P25 Mobile Radio is a high-performing, flexible and robust mobile, designed for use in challenging environments while delivering high quality audio and intuitive operation to first responders around the world.

Single Band Radio Available in 136-174MHz, 378-470MHz, 450-520MHz and 757-870MHz.

SKU: Tait TM9400 Mobile Series Categories: , Tags: , , , ,

Improve user safety

To enhance user safety, the TM9400 series features Lone Worker, a covert microphone and stealth emergency modes as standard. Its rugged build with an IP54 rating, water-resistant control head, and exceeding relevant MIL-STD-810G mean that users can rely on it in extreme conditions.

Enhance efficiency

The TM9400 series supports efficient operations with encryption, voice and data, simulcast support and pre-set status messages. It can also be upgraded with TAIT AXIOM Mobiles, a platform which loads it with more connectivity, powerful new applications, and comprehensive APIs to increase productivity and safety.

Safe, secure communications

For operational security, the TM9400 supports end-to-end encryption (including AES), the Tait Key Fill Device (KFD) and Over-the-air Rekeying (OTAR).

Ease of migration

Each TM9400 features multiple modes of operation, including analog, analog simulcast IP, 12.5kHz P25 Phase 1 FDMA conventional/trunked, P25 Phase 2 TDMA trunked and LSM (CQPSK) decode capability. This supports easy migration to a more spectrally efficient solution when your organization is ready, while reducing risk. It also operates in VHF and 700/800MHz frequency bands.

Choice and interoperability

With adherence to the P25 standards, the TM9400 series offers your organization greater vendor choice, leading to increased competition and interoperability. It also supports flexible expansion via an options slot for additional capabilities.

Work your way

The TM9400 series allows you to work the way that suits you best. With multiple configuration options, upgradability to TAIT AXIOM Mobiles, software licenses for additional features, and programmable function keys, the TM9400 is an efficient addition to any organization.

Technical Specifications

Technical Specifications

Frequency Bands

VHF: 136-174MHz, UHF: 400-470MHz, 450-520MHz, 700/800MHz: 762–870MHz

Output Power

VHF: 50W, 25W, 15W, 10W
UHF: 40W, 25W, 15W, 10W
700/800MHz: [806MHz: 30W, 15W, 5W, 2W; ] 806MHz: 35W, 15W, 5W, 2W

Channels/Zones

4,000 channels/100 zones

Advanced Options

Bluetooth, WiFi OTAP, Last Over Repeat and Onboard Voice Recording available for some models

Tait Tough

Military Standards for high humidity, sand & dust, vibration, shock, rain, solar radiation, and more. IP54 water and dust resistant. Operating temperature of -22°F to +140°F (-30°C to +60°C).

Receiver Sensitivity

Sensitivity, (analog) 12dB SINAD: 0.22μV (-120dBm) for VHF and UHF; 0.28μV (-118dBm) for 700/800MHz
Sensitivity, (P25) 5% BER: 0.22μV (-120dBm) for VHF, UHF and 700/800MHz

Dimensions

Body dimensions (DxWxH)
30/35/50W: 7.7 x 6.3 x 2.1in (195 x 160 x 52mm)
